The 74×73 (ex 74HC73) is a chip with two negative-edge-triggered J-K flip-flops.
In this guide, you’ll learn the things you need to know about this chip in order to use JK flip-flops in your own projects.

What does the 74HC73 / 74LS73 do?
The 74×73 gives you two J-K flip-flops with reset that you can use individually. This is a type of flip-flop that can be set, reset, and toggled. It can be used for making counters, event detectors, frequency dividers, and much more.
In the table below, you can see how to set, reset, and toggle the flip flop output.
Clk | J | K | Q | Description |
---|---|---|---|---|
0 | X | X | Q | Memory (no change) |
1 | 0 | 0 | Q | Memory (no change) |
0 | 1 | 0 | 1 | Set |
0 | 0 | 1 | 0 | Reset |
0 | 1 | 1 | Q̅ | Toggle |
How To Use This Chip
The 74HC73 comes in a 14-pin package, and you need to connect it to power before you can use it. Most 7400 ICs support a VCC voltage of 5V. One difference between the HC and LS version of the chip is that the 74HC73 supports 2V to 6V, while the 74LS73 only supports 5V.
The HC version of this chip can supply a maximum of 25 mA from its output pin.
If you’re using the LS version, the maximum current you can pull out of one output pin is 0.4 mA when the pin is high (sourcing) or 8 mA when the pin is low (sinking).
These values can differ between models, so check the datasheet of your model to verify.

Get the 555 Timer Cheatsheet
A super helpful reference that makes it easy to design circuits, so that you can build oscillators, timer circuits, and more in no time.
Once you’ve connected it to power, you can use any of the two positive-edge-triggered J-K flip-flop with reset inside.

74×73 Pinout

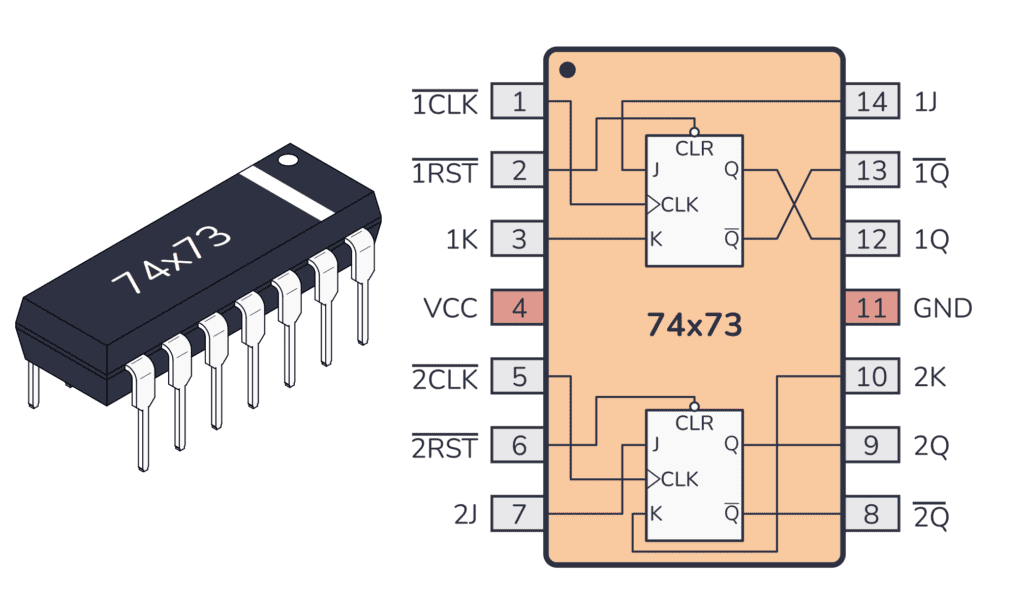

The 74×73 has 14 pins and contains two negative-edge-triggered J-K flip-flop with reset laid out as shown in the pinout diagram below:
